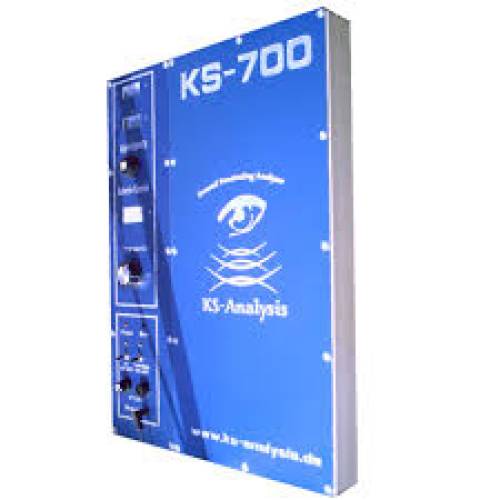

KS-700 GROUND PENETRATING RADAR
Brand: KS-Analysis GPR
Categories: Ground Penetrating Radar Systems (GPR Systems) | Metal Detectors
Detection Systems: Archaeological Treasures Detectors | Metal Detectors
+90 (216) 415 56 86
₹ 1,650,000.00
Buy NowThe device has 1 antenna (transmitting and receiving antenna) which is firmly connected with the apparatus and connected to the electronic components
The device has 1 antenna (transmitting and receiving antenna) which is firmly connected with the apparatus and connected to the electronic components. For this radar it is not necessary to change the antenna in order to explore higher depths, because it is based on other physical principles than, for example, the pulse radar. But it is possible to optimize the device for other searching tasks by adjusting the software. The Real Time Sampling allows for 32,000 stacks/second resulting in an amazing 45 dB increased signal-to-noise ratio.
The antenna is also shielded to all directions and therefore it only permeates (penetrates) into the ground. The depth is calculated with a formula from radar techniques by the software. Our radar can be completely operated by one person only.
The software provides an immediate display of the measurement image.
The measurement profiles are displayed in two dimensions, enabling the user to quickly create the desired profile.
Examples can be found in our references.
2D measurement images:
2D software
is included. The "Import-Export" function allows data to be transferred to 3D software (3D Data Visualization Solution); for example, to "Voxler" by Golden Surfer (not included).
Napoleon Cemetery
KS-700 ground-penetrating radar:
Refinement of previous radiometric and geophysical surveys
3D measurement images:
2D software
is included. The "Import-Export" function allows data to be transferred to 3D software (3D Data Visualization Solution); for example, to "Voxler" by Golden Surfer (not included).
2D & 3D SAMPLING WITH KS-700
MEASUREMENT OF AN UNDERGROUND WATER FLOW AT APPROXIMATELY 8M DEEP
Tunnel, visualization with 4m measurement point spacing; Tunnel, visualization with 2m measurement point spacing (right)
FMCW-Ground Penetrating Radar
Weight: 5.1 kg (without battery)
Antenna is firmly assembled, change not possible
Analysis of measuring profiles via laptop (laptop not included)
System software: MS-Windows
2D visualization software and areal measurement
Dimensions: Length 44, Width 33, Height: 12 cm
Portable by one person only
12V 18Ah Plumb-acid gel battery (rechargeable by every car battery charger) for radar electronics (not included).
Applications in archeology including metal detection,
investigation of contaminated sites, subsurface
probing for construction projects – especially for cable, pipe, and shaft detection,
exclusion of danger from mining-related damage and sinkholes,
localization of old underground rooms, tunnels, galleries, old passages, and much more.
