KS-800 Ground Penetrating Radar

Brand: KS-Analysis GPR

Categories: Ground Penetrating Radar Systems (GPR Systems) | Metal Detectors

Detection Systems: Metal Detectors

+90 (216) 415 56 86

[email protected]

₹ 2,250,000.00

Buy Now



  • The KS 800 has a new software. The new software was programmed with the following advantages:
  • The measurement can be carried out continuously without having to go to the start point
  • The recording of the data is saved automatically, there is no need to do anything in the software
  • Press the record button
  • The measurement is automatically displayed in the measurement image and can be saved
  • The conversion to the 3D representation runs automatically and the 3D image can be viewed immediately
  • The measurement can be saved on an external storage medium and also loaded into Voxler
  • Updates can be installed automatically via an internet connection
  • The search for the surface of smaller materials is distributable
  • Deep-lying materials are displayed optimally

The software provides an immediate display of the measurement image.
The measurement profiles are displayed in two dimensions, enabling the user to quickly create the desired profile.
Examples can be found in our references.

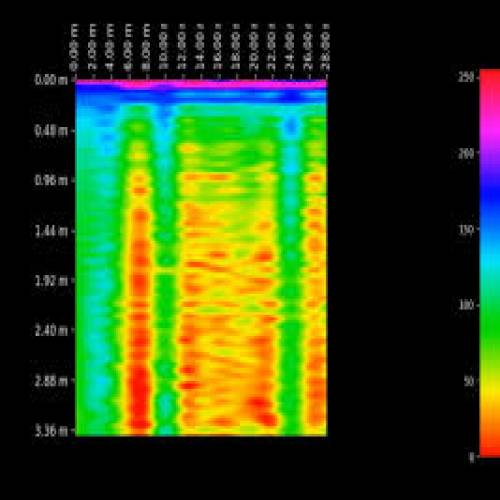

2D measurement images:

2D software
is included. The "Import-Export" function allows data to be transferred to 3D software (3D Data Visualization Solution); for example, to "Voxler" by Golden Surfer (not included).

Napoleon Cemetery

KS-700 ground-penetrating radar:
Refinement of previous radiometric and geophysical surveys

12

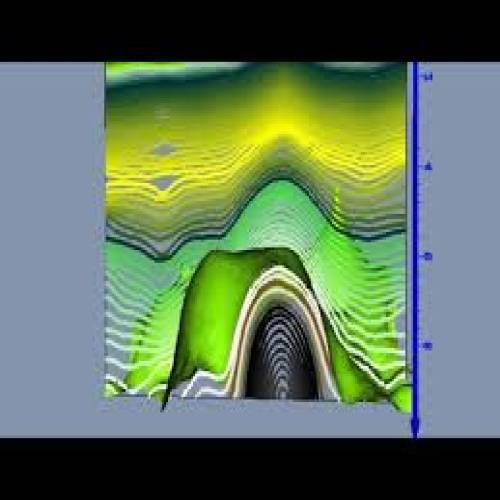

3D measurement images:

2D software
is included. The "Import-Export" function allows data to be transferred to 3D software (3D Data Visualization Solution); for example, to "Voxler" by Golden Surfer (not included).

2D & 3D SAMPLING WITH KS-700

MEASUREMENT OF AN UNDERGROUND WATER FLOW AT APPROXIMATELY 8M DEEP

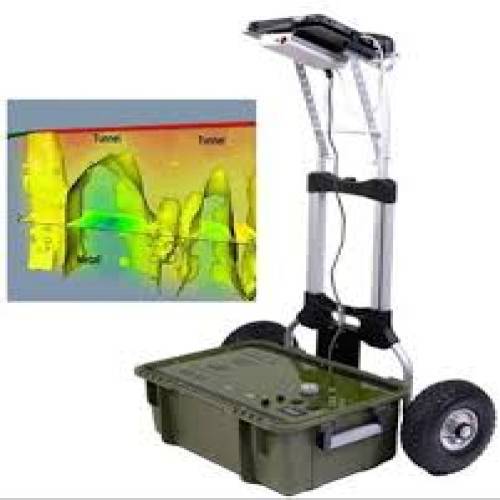

Tunnel, visualization with 4m measurement point spacing; Tunnel, visualization with 2m measurement point spacing (right)

Height: 26cm without chassis / 1.25cm with chassis
Width: 43cm
Length: 63cm

  • Antenna: T / R
  • Depth power: 30-60m (limestone)
  • Battery: lithium polymer 15Ah built-in

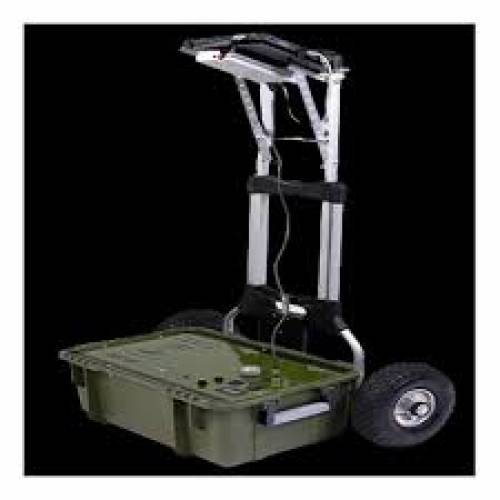

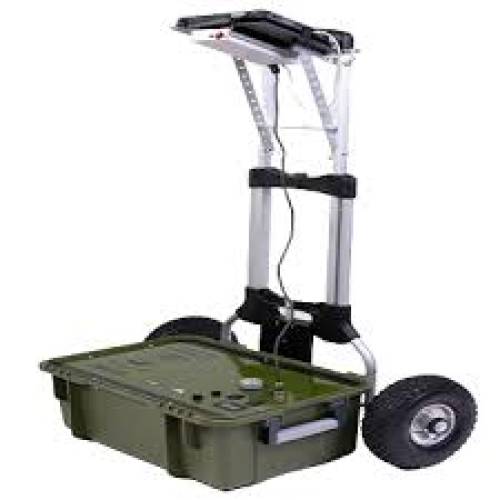

  • Mobile with trolley
  • Compact structure Handling on the measuring field of 1 person
  • Shipping: 2 boxes
  • Compact structure
  • Foldable (transport)
  • waterproof and shockproof touchpad
  • 2D and 3D software touchpad
  • USB socket for exporting to USB
  • Improved data processing
  • Resolution 1-6m
  • Max. sampling rate 200 ms / s
  • Buffer-memory 16KS
  • Rise time 14 ns
  • Vertical resolution 8 bit
  • Timebase ranger 10ns / 1s
  • Timebase accuracy +/- 100 ppm
