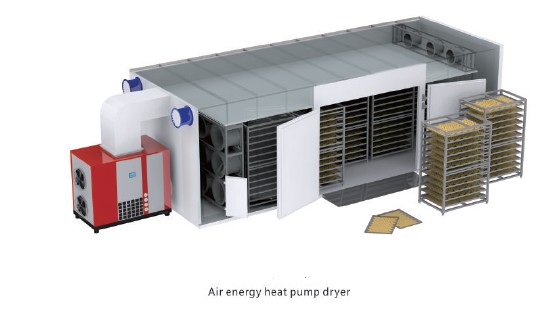

Heat Pump Dryer
This heat pump dryer is a new energy-saving equipment that integrates dehumidification and heating technologies. It is equipped with multiple heat recovery devices, which effectively improve the utilization of heat energy. Compared to ordinary heat pump drying equipment, it saves more than 60% of energy and greatly reduces operating costs. The heat pump drying process is close to natural drying, which helps preserve the color, aroma, taste, and active ingredients of dried agricultural products, making it suitable for long-term storage. This dryer has now become an ideal equipment for agricultural product drying and processing.
The working principle of the heat pump dryer involves refrigerant compression through the compressor to form high-temperature and high-pressure gas. The gas is then sent into the condenser to release heat, which is used to heat the air in the chamber (the maximum air temperature can reach up to 75°C). As the air temperature rises, the moisture in the drying material gradually evaporates, and the excess moisture is exhausted by the fresh air dehumidification system, achieving the drying effect.
The heat pump dryer also offers significant energy savings and cost reductions compared to traditional drying methods. It is environmentally friendly and promotes safety during the drying process. The system adopts advanced air separation technology, ensuring both safety and low pollution emissions during operation. This makes it an eco-friendly and efficient solution for drying agricultural products while minimizing its environmental impact.
Easy to use, no assembly required.
Just need connecting power cables only.
Energy Efficiency
Uses a heat pump system to recycle and reuse heat, reducing energy consumption by up to 50-70% compared to traditional drying systems.
Low Temperature Drying
Operates at lower temperatures (typically 40-75°C), preserving the quality, color, and texture of sensitive materials like food, herbs, or pharmaceuticals.
Environmentally Friendly
No direct combustion or emissions, making it eco-friendly and ideal for applications requiring strict environmental standards.
Uniform Drying
Equipped with advanced airflow systems and precise temperature controls to ensure even drying across all materials.
Wide Application Range
Suitable for drying various products, including fruits, vegetables, seafood, meat, herbs, textiles, and industrial materials.
Closed-Loop System
Minimizes moisture release into the surrounding environment, maintaining a clean and controlled workspace.
High Moisture Removal Efficiency
Effectively removes moisture from materials while retaining their original nutrients, flavor, and quality.
User-Friendly Design
Features programmable control panels, adjustable temperature and humidity settings, and automated drying cycles for easy operation.
Durability and Longevity
Made from high-quality, corrosion-resistant materials, ensuring long-term use with minimal maintenance.
Cost-Effective Operation
Although the initial investment might be higher, the energy savings and low maintenance costs result in reduced operational expenses over time.
Customizable Solutions
Available in various sizes and configurations to meet specific industrial or commercial drying needs.
Safety Features
Includes built-in safety systems such as temperature control, pressure sensors, and overheat protection to ensure safe operation.
Heat pump dryers are particularly favored in industries like food processing, agriculture, pharmaceuticals, and textiles for their efficiency, reliability, and ability to maintain the quality of the dried products.

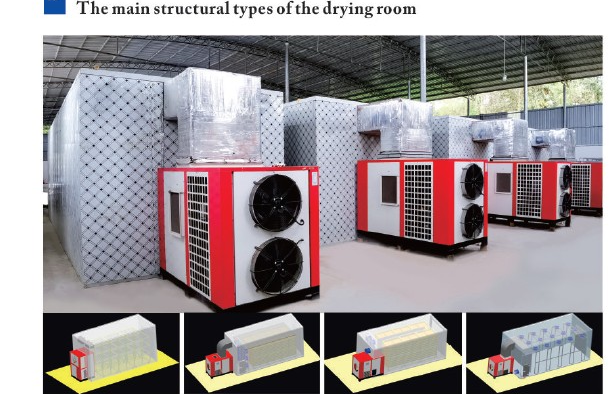

| Heat Pump Drying Room Technical Specifications | |
|---|---|
| Model | GXR-B-3P-C, GXR-B-5P-C, GXR-B-8P-C, GXR-B-15-X, GXR-B-25P-X, GXR-B-30P-X |
| Drying Room Size | 3300×2000×2200mm, 4500×2300×2150mm, 5900×2300×2150mm, 6200×2100×2700mm, 7800×3000×2700mm, 8000×4500×2700mm |
| Material Thickness | T=75mm Polyurethane Hook Plate, T=100mm Polyurethane Hook Plate |
| Air Supply Method | Quenching Air, Downward Blowing and Upward Returning Air |
| Air Flow (m³/H) | 4.9, 6.3, 9, 14.7, 18, 25.3 |
| Heat Pump Power (KW) | 3.5, 4.9, 6.3, 9, 12, 18 |
| Heating Power (KW) | 5.75-9, 7.15-9, 8.55-12, 10.1-12, 21.45-18, 34.3-24 |
| Electric Heater Power (KW) | 6, 6, 9, 12, 18 |
| Circulating Fan Power (KW) | 0.25, 0.25, 0.25 |
| Moisture Exhaust Fan | 1, 1, 1, 1, 2 |
| Cart Layers | 12 |
| Cart Number | 12 |
| Cart Size | 140mm |
| Spray Panel Material | 201 Stainless Steel |
| Exhaust Fan Size (mm) | 860×810×1830mm, 1400×900×1740mm |
| Weight | 585KG |
| Production Date | / |
| Manufacturer | / |
