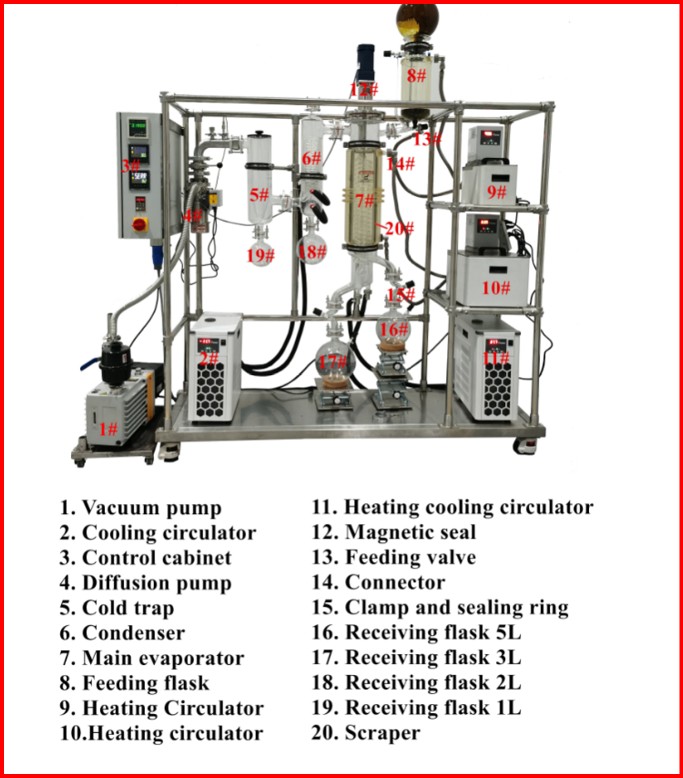

Molecular - Short path distillation Equipment YMD-150(0.25m2)

Molecular - Short path distillation Equipment YMD-150(0.25m2)
Molecular - Short path distillation Equipment YMD-150(0.25m2)

Short path distillation/Molecular distillation is a special liquid-liquid separation technology, which is different from traditional distillation on the different boiling point. This is a kind of distillation in high vacuum environment, for the difference of material molecular movement free path, was carried out in the heat sensitive material or high boiling point material distillation and purification process. Short path distillation is mainly used in chemical, pharmaceutical, petrochemical, spices, plastics, oil and other fields

Short Path Distiller YMD-150 Main Parameters

Parts Technical Parameter
Main Components
  1. Jacketed Glass Barrel with Internal Cooling Condenser
    Diameter: 150mm
    Effective Evaporation Area: 0.25m2
    Processing Rate: 1500–3000 gram/hour
  2. Jacketed Feeding Vessel with Lid
    Volume: 2L
    Number of Ports on Lid: 3
    Port Size: 24/40
  3. Distillate Receiving Flask
    Volume: 3L
    Port: Spherical Joint
  4. Residue Receiving Flask
    Volume: 3L
    Port: Spherical Joint
  5. Cold Trap with 1L Collection Flask
  6. Wiper Material: Stainless Steel 316L
    Blade Material: PTFE
  7. Control System:
    Digital High Vacuum Gauge (0.01pa–1atm), Pirani Type
    VFD Speed Controller for Stirring Motor, Motor Power: 120W
    Two Temperature Controllers for Heating Tapes
    Electricity: 220V, single-phase, 1 kW total
  8. Support Frame
    Material: Stainless Steel 304
    Supporting equipment for YMD-150 molecular distiller
HC-100 Heating Circulator for Feeding Vessel
Reservoir Volume: 5L
Temperature Range: RT–300℃
Pump Rate: 8L/min
Heating Power: 1.6kW
Electricity: 220V
HC-2030 Heating Circulator for Jacketed Glass Barrel
Reservoir Volume: 30L
Temperature Range: RT–300℃
Pump Rate: 15L/min
Heating Power: 3.8kW
Electricity: 220V
HCC-1005 Heating/Cooling Circulator for Internal Condenser
Reservoir Volume: 5L
Temperature Range: 0–100℃
Pump Rate: 15L/min
Heating Power: 1.8kW
Electricity: 220V, single-phase
RVP-16 Vacuum Pump
Pump Speed: 8L/S
Oil Consumption: 0.55L
Ultimate Partial Pressure: < 5 Pascal
Rotating Speed: 1420r/min
Motor Power: 1.1kW
Electricity Power: Single/3 Phase
External Condenser Additional external (Terpenes) condenser between the jacketed barrel and cold trap
CC-10 Supporting Chiller Supporting Chiller for External Condenser (AC-001)
Bath Volume: 10L
Lowest Temperature: -32℃
Pump Rate: 20L/min
Electricity: 220V
