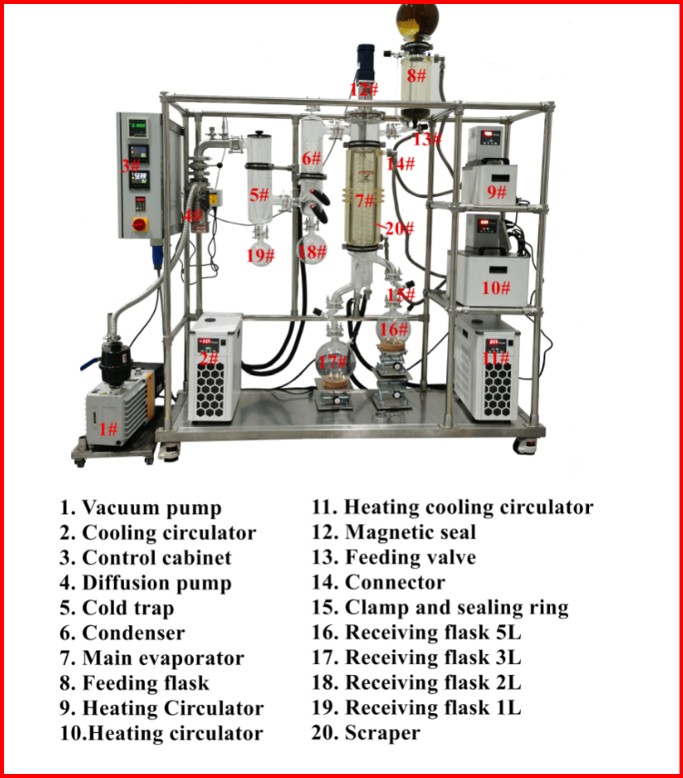

Molecular - Short path distillation Equipment YMD-100(0.15m2)
Short path distillation/Molecular distillation is a special liquid-liquid separation technology, which is different from traditional distillation on the different boiling point. This is a kind of distillation in high vacuum environment, for the difference of material molecular movement free path, was carried out in the heat sensitive material or high boiling point material distillation and purification process. Short path distillation is mainly used in chemical, pharmaceutical, petrochemical, spices, plastics, oil and other fields.

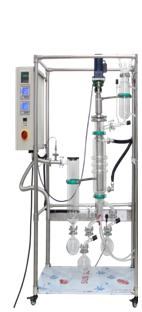

YMD-100 Molecular Distillation System
| No. | Parts | Technical Parameter |
|---|---|---|
| 1 |  |
Main Components
Supporting equipment for YMD-080 molecular distiller |
| 2 |  |
GX-2005 — Heating Circulator for Feeding Vessel Reservoir Volume: 5L Temperature Range: RT–300℃ Pump Rate: 8L/min Heating Power: 1.6kW Electricity: 220V |
| 3 |  |
GX-2010 — Heating Circulator for Jacketed Glass Barrel Reservoir Volume: 10L Temperature Range: RT–300℃ Pump Rate: 15L/min Heating Power: 2.1kW Electricity: 220V |
| 4 |  |
Processing Capacity — Heating/Cooling Circulator for Internal Condenser Reservoir Volume: 5L Temperature Range: 0–100℃ Pump Rate: 15L/min Heating Power: 1.8kW Electricity: 220V, single-phase |
| 5 |  |
YHX-16 — Vacuum Pump Pump Rate: 9 CFM Oil Consumption: 1.5L Ultimate Partial Pressure: < 4×10⁻⁴ mbar Rotating Speed: 1420 r/min Motor Power: 0.55kW / 0.7HP Electricity: 220V, Single/3P |
| 6 |  |
Additional External (Terpenes) Condenser Placed between the jacketed barrel and cold trap. |
| 7 |  |
YHLT10/30 — Supporting Chiller for External Condenser Bath Volume: 10L Lowest Temperature: -32℃ Pump Rate: 20L/min Electricity: 220V |
